VISUALIZE YOUR PROCESS IN 3D

Material tracking systems are usually based on field instruments and it takes only a glitch or an unexpected crane intervention for the tracking to become out of sync. Using 3D visualizations to detect and fix these problems is a natural step forward.

Being completely web based, this framework does not require the clients to download any third party component and works natively in all modern browsers, it is an excellent choice for displaying the plant status in management dashboards.

This application includes all you need to visualize, detect, and correct errors on product tracking systems.

Caster Demo Finishing Demo Coil Yard

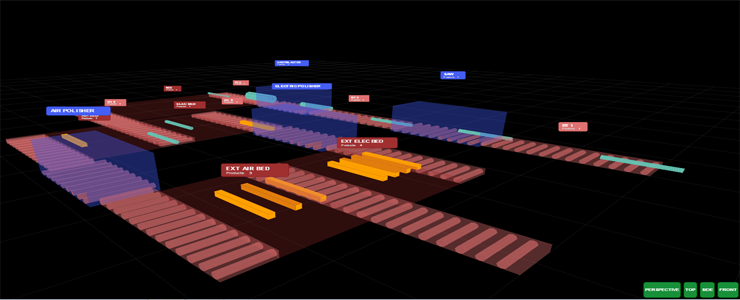

3D PROCESS EXPLORER

WEB-BASED 3D SCENE MANAGER

Three dimensional models of actual production lines to be embedded into dashboards and intranet sites.

Modular javascript objects that represent physical production lines are used to display equipment, products, parts and, process data.

The user can explore the scene using pan and zoom commands as well as modify the scene by interacting with the existing 3D objects

Caster Demo Finishing Demo Coil Yard

FEATURES

Stunning Mimics for dashboards
Realistic product tracking HMIs
Useful for training sessions
Easily integrated into the backend
Fine object granularity

HARDWARE & TECHNOLOGIES

HTML5/AJAX Web Application
Based on Three.js open source library
Reusability of objects
Rich and modular API
Runs natively in all modern browsers
No 3rd party components needed
